FixVault
Home
›
Kia
›
2021
›
Telluride SX, FWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Electronic Stability Control (ESC) System
›
ESC Control Module
›
Repair Procedures
›
Diagnostic procedure by using diagnostic device
›

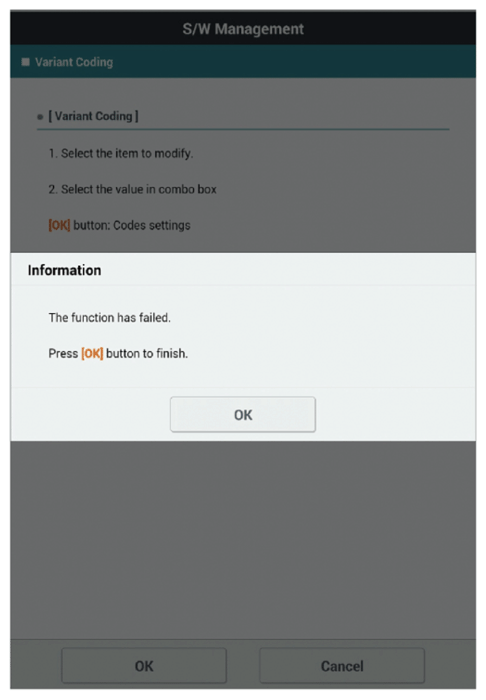

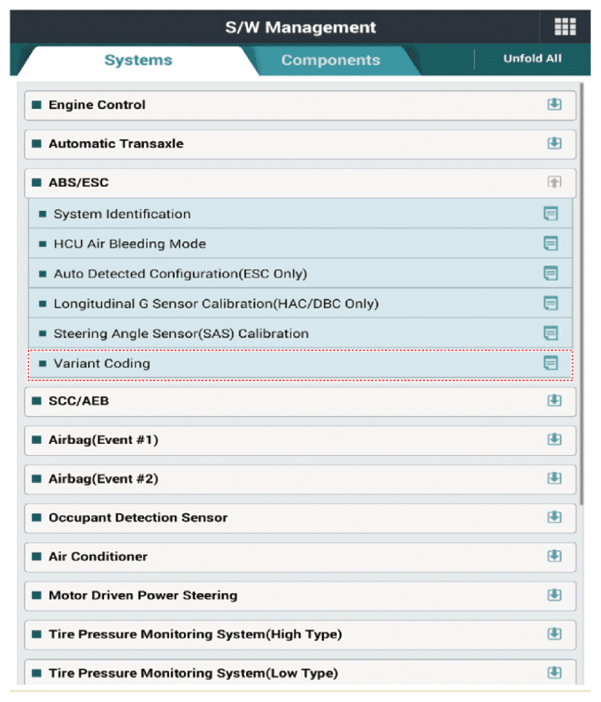

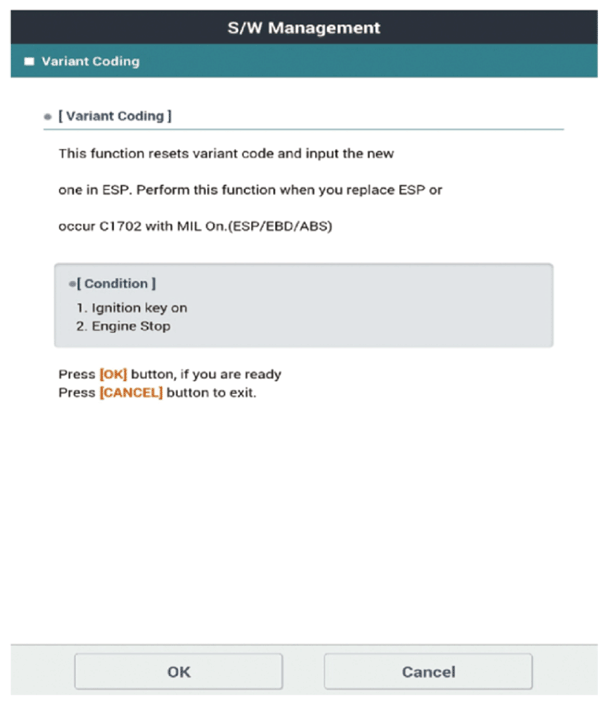

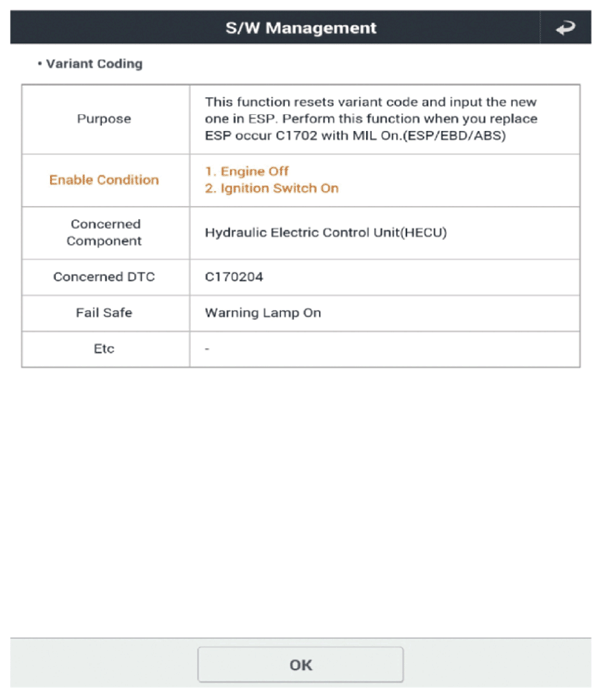

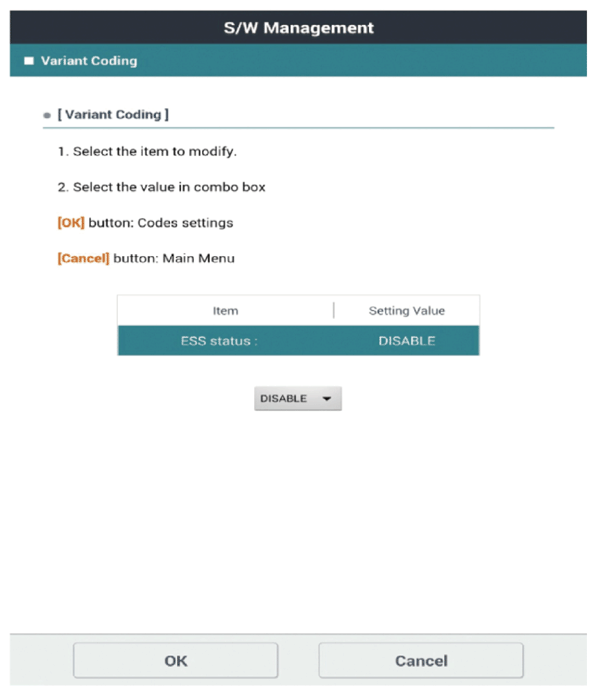

[Variant Coding]
[Variant Coding]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
