Removal & Installation: Installation

Install in the reverse order of removal.

NOTE:

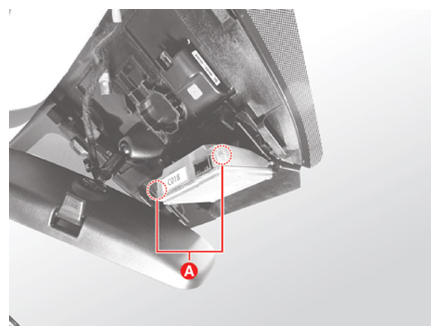

Align the reference point at alignment point (A) and align front view camera.

G14806947

Courtesy of KIA MOTORS AMERICA, INC.

Fully assemble until you can hear a "clicking" sound when assembling.

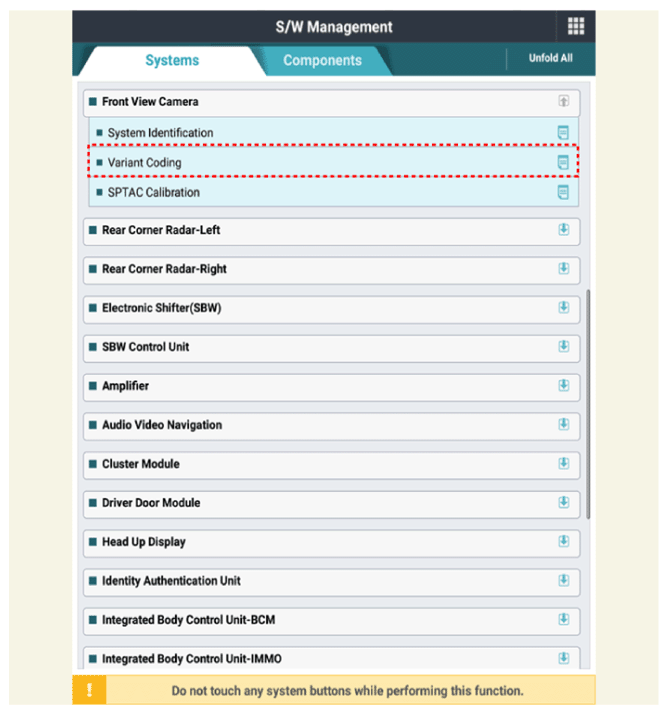

When replacing the front view camera with a new one, perform the "Variant Coding" procedure using KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the front view camera unit calibration.
(Refer to Front View Camera Unit - "ADJUSTMENT ")
