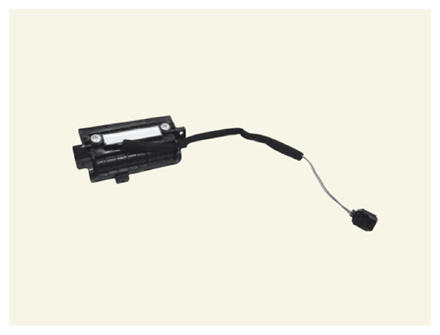

Tailgate Outside Handle Switch

Remove the tailgate lower trim.
(Refer to Body - "TAILGATE TRIM ")

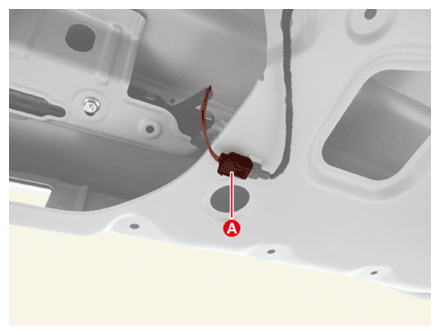

Disconnect the tailgate outside handle swich connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

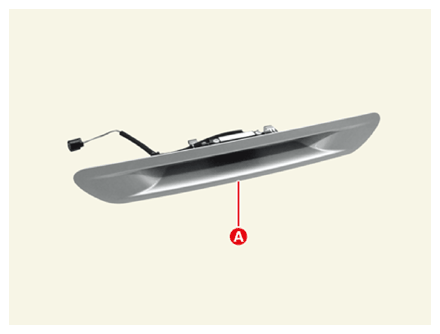

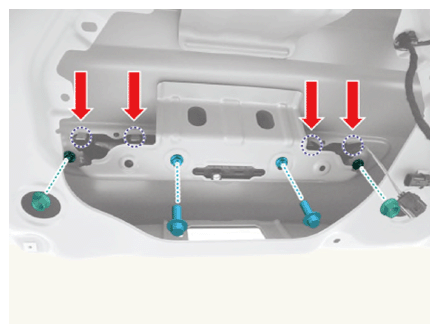

Remove the tailgate outside handle (A) after removing the mounting bolts and nuts.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip mounting position:

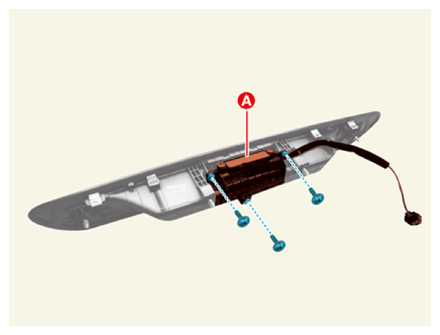

Remove the tailgate outside handle switch (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
