Charging System: Alternator: Inspection: Stator

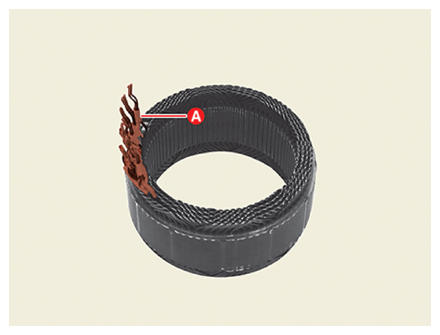

Check that there is continuity between each pair of stator coil (A). It is normal if there is continuity.

Courtesy of KIA MOTORS AMERICA, INC.
Check that there is continuity between each stator coil and the coil core. It is normal if there is no continuity.
If the coil fails either continuity check, replace the stator.
