Starter Relay: Inspection

  1. Disconnect the battery negative (-) terminal.

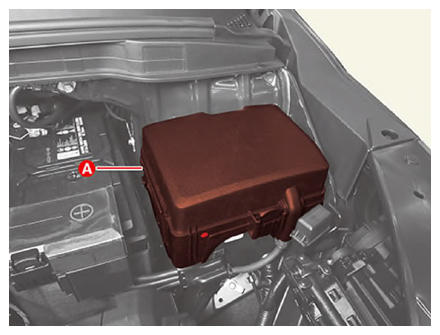

  2. Remove the fuse box cover (A).
    G14797078Courtesy of KIA MOTORS AMERICA, INC.

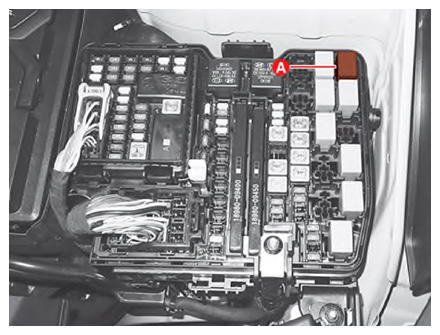

  3. Remove the starter relay (A).
    G14797079Courtesy of KIA MOTORS AMERICA, INC.

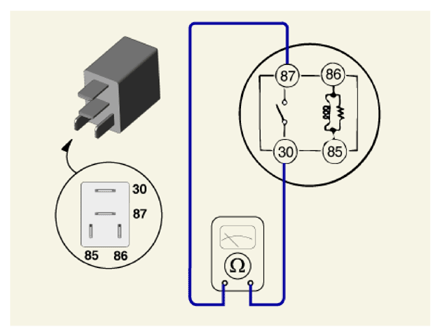

  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1 MΩ or higher If there is continuity between the terminals, replace the relay.
    G14797080Courtesy of KIA MOTORS AMERICA, INC.

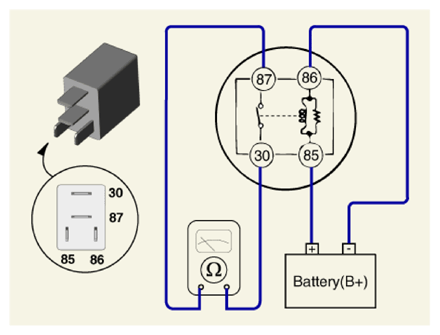

  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1Ω or less If there is no continuity between the terminals, replace the relay.
    G14797081Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the starter relay (A).
    G14797082Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the fuse box cover (A).
G14797083Courtesy of KIA MOTORS AMERICA, INC.
