ETC Motor
ETC Motor

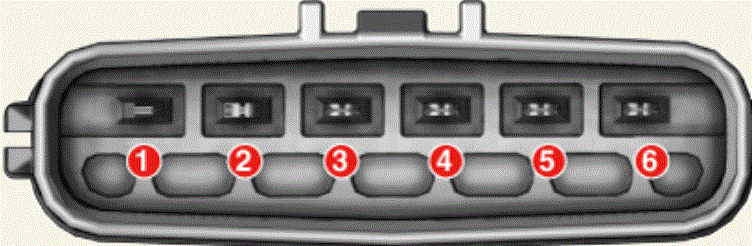

Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.
Specification:
1.38 Ω
