Fuel Sender: Inspection
- Remove the fuel pump module.
(Refer to Engine Control/Fuel System - "FUEL PUMP MODULE ")

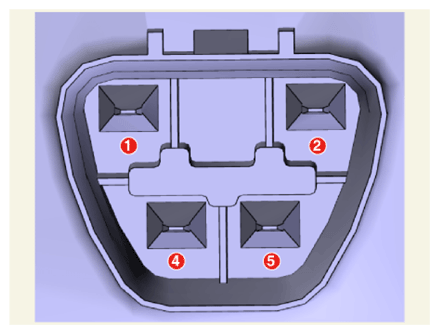

- Put the float of the fuel sender at the top and bottom positions and measure the resistance between terminals 1 and 3 of the fuel pump connector (A).
Terminal Function 1 Fuel Sender (+) 2 - 3 Fuel Sender (-) 4 Fuel Pump (+) 5 Fuel Pump (-) - Compare the measured resistance with the specification below.
| Position | Resistance (Ω) | Capacity [l (U.S gal., U.S.qt., Imp.qt.)] |
|---|---|---|
| E | 297.0 - 305.0 | 4.0 (1.05, 4.22, 3.51) |
| 1/2 | 80 - 84 | 37.3 (9.85, 39.41, 32.82) |
| F | 14.0 - 16.0 | 70.6 (18.65, 74.60, 62.12) |
