Components
Components & Components Location: Components

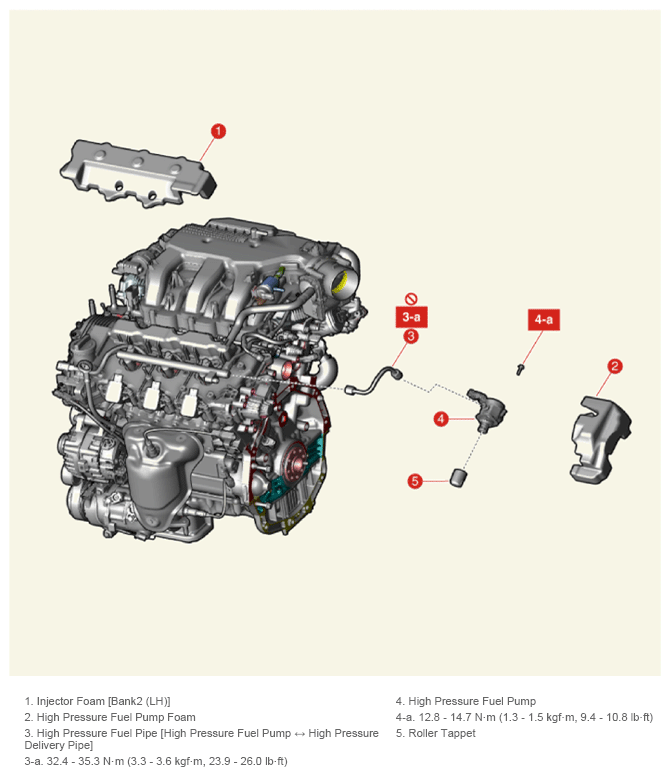

Fig 1: High Pressure Fuel Pump Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
