Injector
›
Components & Components Location
›
Components Location
›
High Pressure Delivery Pipe
High Pressure Delivery Pipe

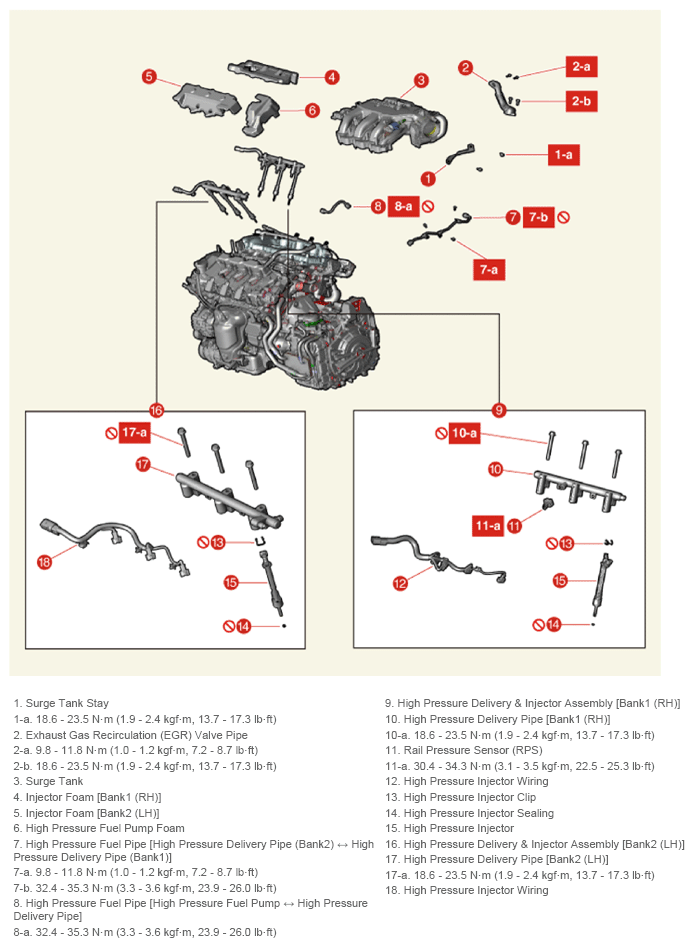

Fig 1: Injector Components Location With Torque Specification (High Pressure Delivery Pipe)
Courtesy of KIA MOTORS AMERICA, INC.
