Components & Components Location
›
Components Location
›
Low Pressure Delivery Pipe
Low Pressure Delivery Pipe

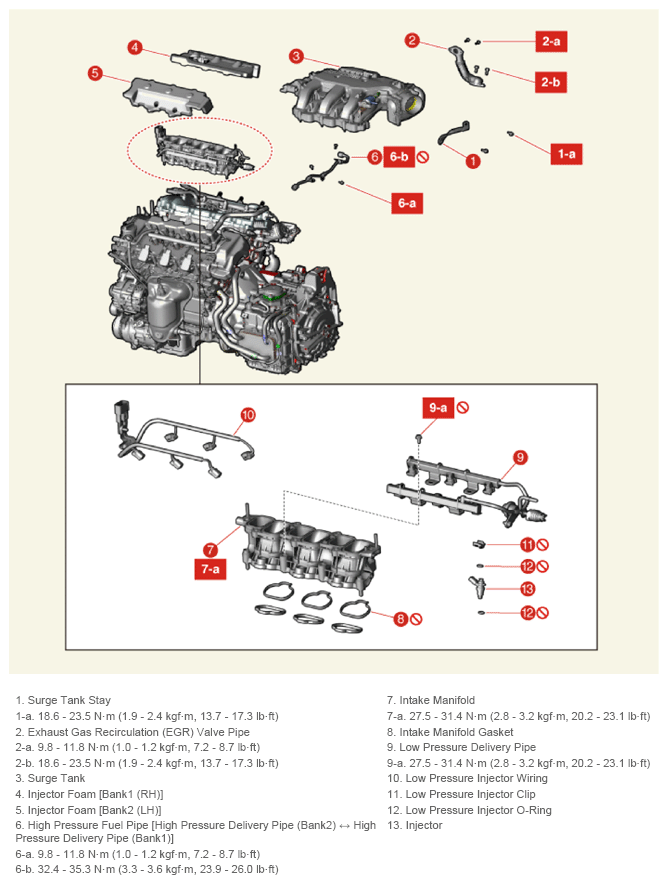

Fig 1: Injector Components Location With Torque Specification (Low Pressure Delivery Pipe)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
