Component Inspection: Notes

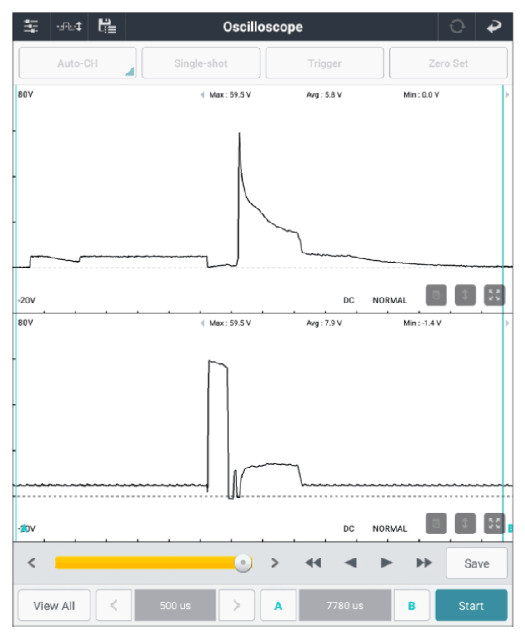

| GDI Injector Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
Injector #1, #3, #5 (GDI) connector | 2 (high) | Chassis ground | - | Fig. 1 |
| Injector #1, #3, #5 (GDI) connector | 1 (low) | Chassis ground | - | ||
| Injector #2, #4, #6 (GDI) connector | 1 (high) | Chassis ground | - | Fig. 1 | |
| Injector #2, #4, #6 (GDI) connector | 2 (low) | Chassis ground | - | ||
Good
- Go to "MPI Injector Inspection" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the GDI injector and Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing the component, perform following "Resetting Adaptive Values" procedure.

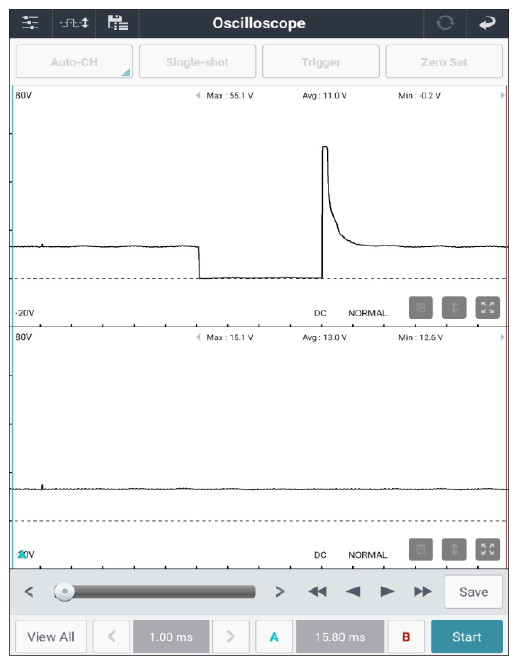

| MPI Injector Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
Injector #1, #3, #5 (MPI) connector | 2 (control) | Chassis ground | - | Fig. 1 |
| Injector #1, #3, #5 (MPI) connector | 1 (power) | Chassis ground | - | ||
| Injector #2, #4, #6 (MPI) connector | 2 (control) | Chassis ground | - | Fig. 1 | |
| Injector #2, #4, #6 (MPI) connector | 1 (power) | Chassis ground | - | ||
Good
- Go to "SYSTEM INSPECTION " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the MPI injector and Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing the component, perform following "Resetting Adaptive Values" procedure.
