Dynamic Damper: Installation

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.

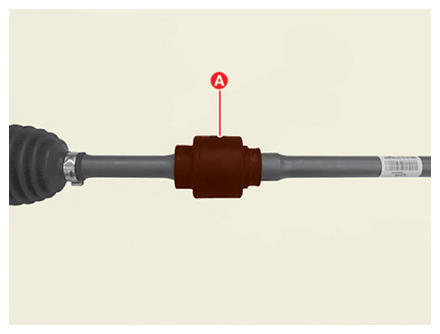

  1. Install the dynamic damper (A).
    G14797908Courtesy of KIA MOTORS AMERICA, INC.

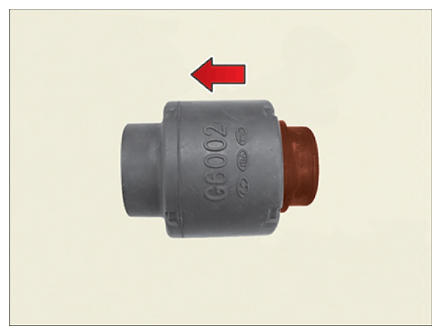

    NOTE: When installing the dynamic damper, install it in the direction of the arrow. Installing in the wrong direction can cause secondary quality problems.
    G14797909Courtesy of KIA MOTORS AMERICA, INC.

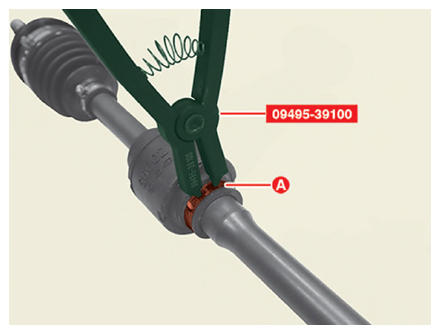

  2. Install the dynamic damper band (A) using SST (09495 - 39100).
    G14797910Courtesy of KIA MOTORS AMERICA, INC.

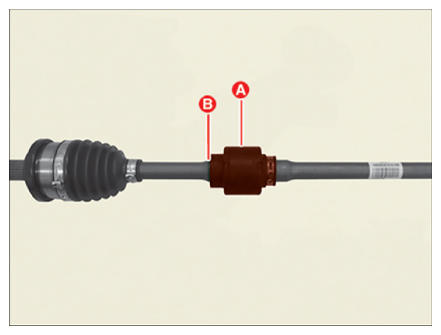

    NOTE: When installing the dynamic damper (A), make sure that the damper fits into the groove (B).
    G14797911Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
