Stop Lamp Switch: Inspection: Notes
WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect a removed stop lamp switch along the below procedures.
- Confirm a normal connection with terminal part

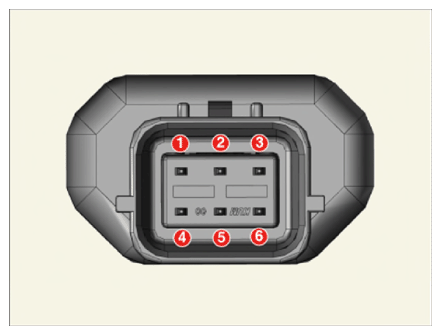

A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Terminal |
Description |
| 1 |
IGN1 |
| 2 |
Engine Control Module (ECM) |
| 3 |
- |
| 4 |
B+ |
| 5 |
Stop Lamp |
| 6 |
Ground |
- Perform resistance check.
Resistance:
800 Ω
