Wheel Alignment: Tires/Wheels/Alignment: Alignment: Adjustment: [Front]: Camber
Camber is the degree to which the center of the wheel is tilted in or out.
Camber angle:
-0.5° ± 0.5°
 Courtesy of KIA MOTORS AMERICA, INC.
|

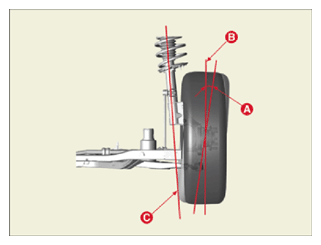

| Item |
Descriptions |
| A |
Camber angle |
| B |
Center line |
| C |
Strut center line |
