Wheel Alignment: Tires/Wheels/Alignment: Alignment: Adjustment: [Rear]: Toe

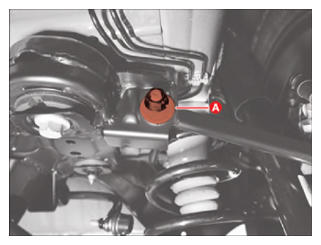

Adjust the toe by rotating the cam bolt (A) connected to the rear assist arm clockwise or counterclockwise. At this time, adjust the left and right cam bolts to the same amount.
Toe (Total): 0.2° ± 0.2°
Toe (Individual): 0.1° ± 0.1°
| Cam bolt | Rotation | Increase/Decrease | Change per scale |
|---|---|---|---|
| RH | Clockwise | Toe-in | about 0.25° |
| LH | Clockwise | Toe-out | about 0.25° |
