Wheel Alignment: Tires/Wheels/Alignment: Tire: Removal

1. Remove valve core and deflate the tire.

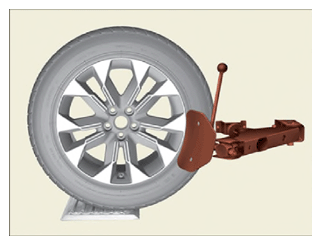

2. Remove the side of the tire bead area from the wheel using tire changing machine.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Make sure the bead breaker is sufficiently separated from the TPMS sensor.
   • Remove the bead at away 90°, 180°, and 270° from the valve.

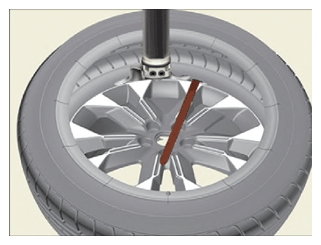

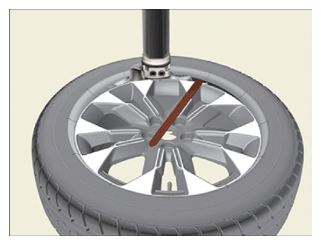

3. Rotate the wheel clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

• Set the TPMS sensor at 12 o'clock from the head of the tire changer.
• When lifting the bead with the lever, make sure that the sensor is not impacted.
• If the resonator attached, be careful not to damage it when removing and installing the tire.
