Wheel Balance: Inspection

Wheel balance needs to be adjusted if the tires are unbalanced or after tire replacement or maintenance work has been performed.

Maximum rim unbalance weight:  2.12 oz (60g)

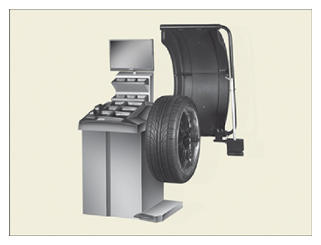

G14798089Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • If the maximum unbalance weight over than 3.53 oz (100g), reassemble the wheel and tire, then perform the wheel balance adjustment.
  • Make sure that the wheel and tire installed in the balancer securely.
  • Do not use an On-car balancer.
  • For details, refer to the instructions of each balancer.

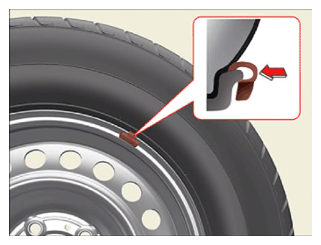

G14798090Courtesy of KIA MOTORS AMERICA, INC.
