Ignition Switch: Inspection

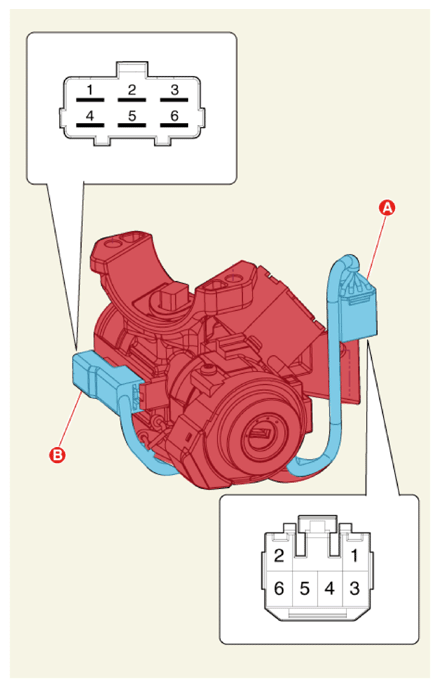

1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

   Courtesy of KIA MOTORS AMERICA, INC.

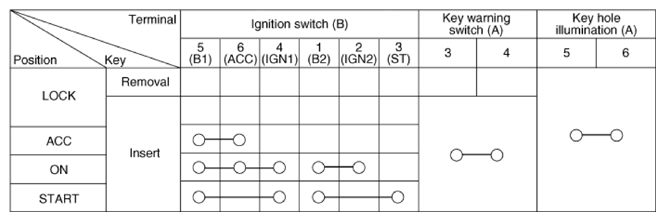

2. Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.
