Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 5

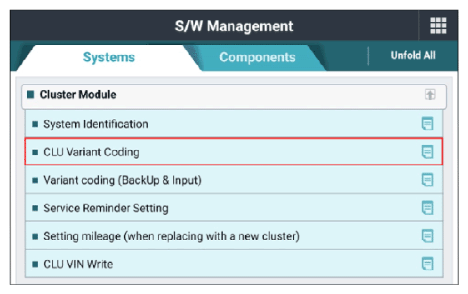

G14868767Courtesy of KIA MOTORS AMERICA, INC.

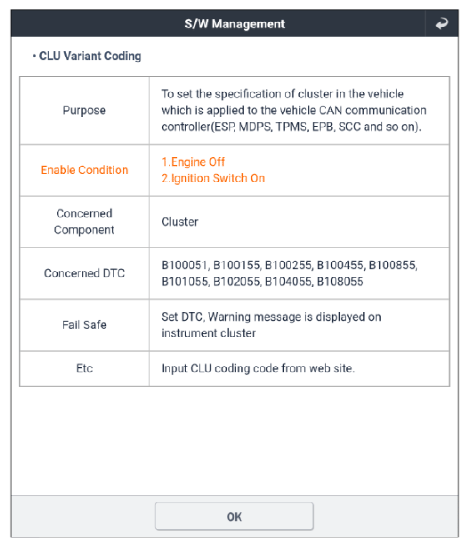

G14868768Courtesy of KIA MOTORS AMERICA, INC.

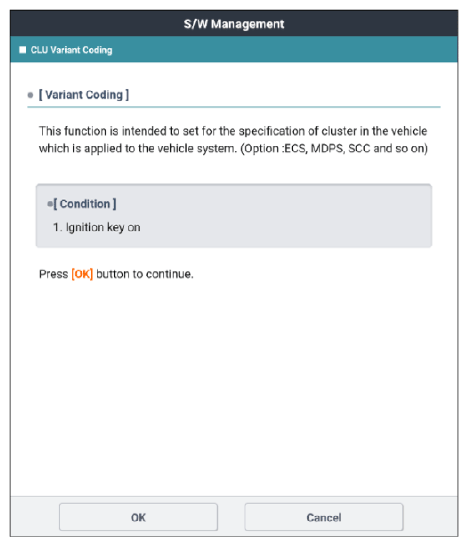

G14868769Courtesy of KIA MOTORS AMERICA, INC.

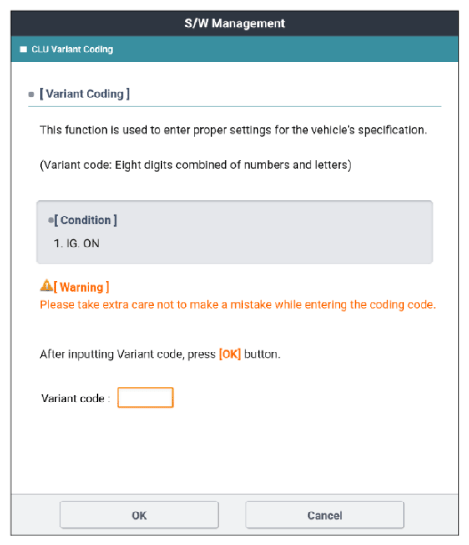

G14868770Courtesy of KIA MOTORS AMERICA, INC.
G14868771Courtesy of KIA MOTORS AMERICA, INC.
