System Initialization

System initialization is needed to recognize the closing position of the tailgate to power tailgate module.

After the battery power is reset, the initialization process is executed to find the maximum opening/closing position of the tailgate.

After system initialization is completed, the general tailgate opening/closing operation can be ensured only by recognizing the closing position and the maximum opening position of the tailgate.

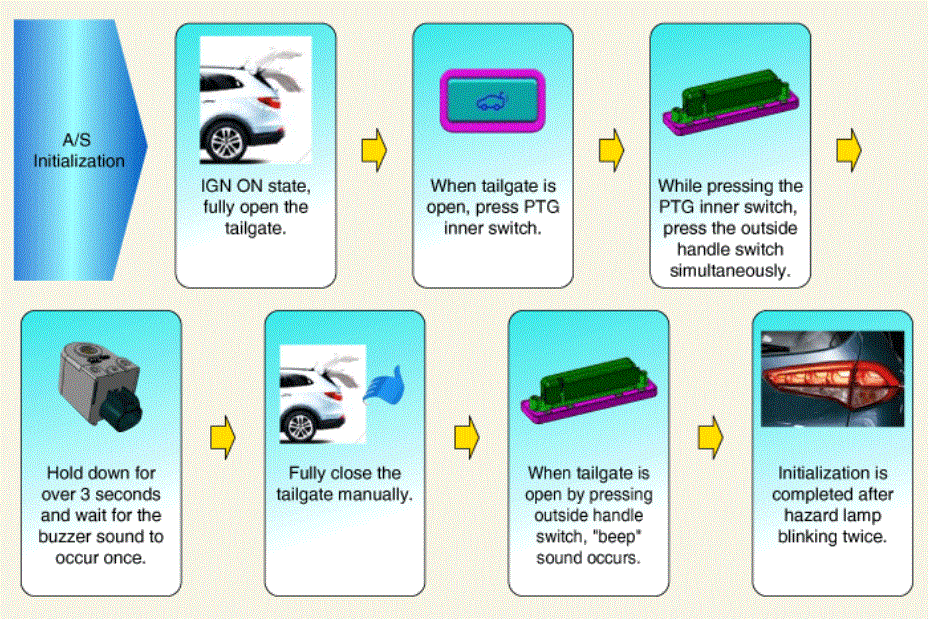

Procedure:

G14860830Courtesy of KIA MOTORS AMERICA, INC.
