Clock Spring

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

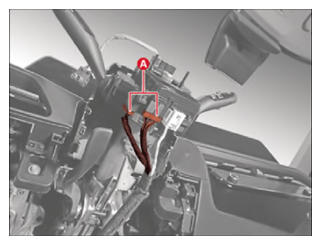

  4. Disconnect the clock spring wiring harness and multifunction switch harness connector (A).
    G14860466Courtesy of KIA MOTORS AMERICA, INC.

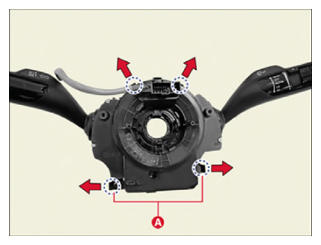

  5. Remove the clock spring by separating the lock hook (A) in the direction of the arrow.
    G14860467Courtesy of KIA MOTORS AMERICA, INC.

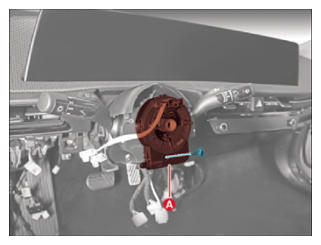

  6. Remove the clock spring (A) after removing the screw.
    G14860468Courtesy of KIA MOTORS AMERICA, INC.
