Front Radar: Installation

NOTE:
  • Check for vehicle alignment and tire pressure for accurate radar calibration.
  • Make sure the vehicle does not sag. (Check the suspension problem)
  • Put the vehicle on the level ground.
  • Check that the front surface of the front radar is clean.
  1. Before installing the front radar, check the last 2 digits of the Lot, No (A). The label is on the back of the front radar.
    IMPORTANT: The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.
    G14862926Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the front radar.

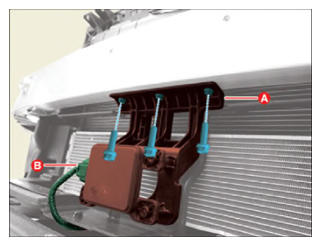

    1. Install the front radar (A) after tightening the nuts.

    Tightening torque:

    8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

    1. Connect the front radar connector (B).
      G14862927Courtesy of KIA MOTORS AMERICA, INC.
  3. Check and align the front radar mounting angle.

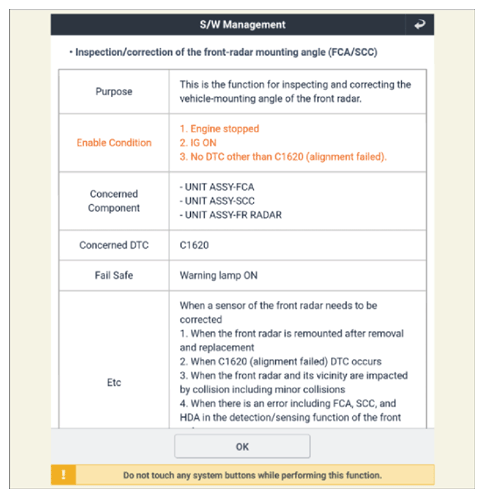

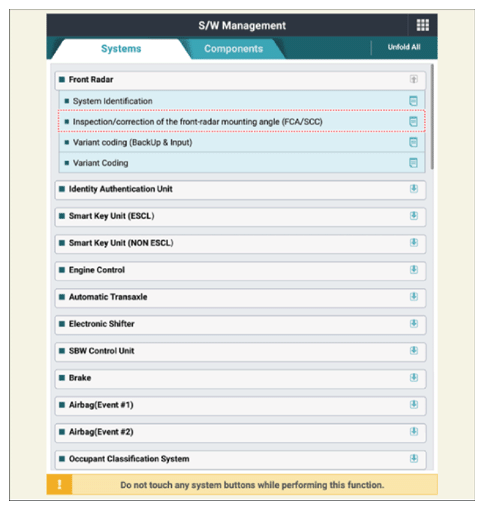

    1. Perform the "inspection/correction of the front - radar mounting angle" using the KDS.
      G14862928Courtesy of KIA MOTORS AMERICA, INC.
      G14862929Courtesy of KIA MOTORS AMERICA, INC.

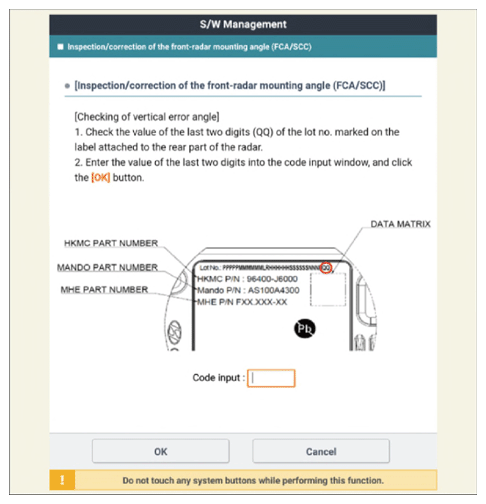

    2. Input the 2 digit value in the code input box, then press "OK"
      G14862930Courtesy of KIA MOTORS AMERICA, INC.

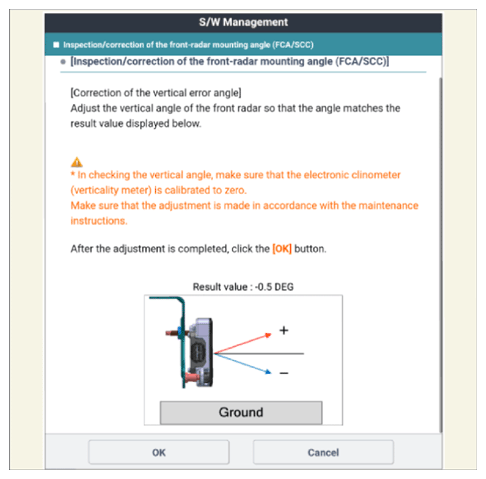

    3. Check for any compensated vertical angle errors in KDS.
      G14862931Courtesy of KIA MOTORS AMERICA, INC.

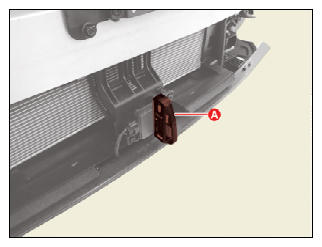

    4. Check the front radar vertical angle by using the digital inclinometer.
      G13956630Courtesy of KIA MOTORS AMERICA, INC.
      NOTE:
      • Make sure to perform zero setting before using vertical protractor.
      • Be careful with +/- readings when finding true vertical using vertical protractor.

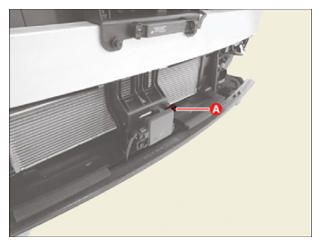

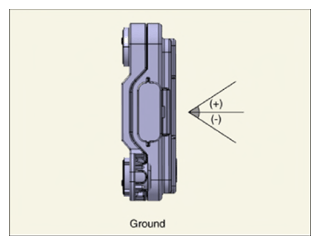

    5. Adjust to 'target vertical angle" by turning the adjusting screw (A) of the front radar.
      • turn clockwise: adjusting (+) angle
      • turn counterclockwise: adjusting (-) angle
      NOTE:
      • Adjustment of the bracket can be applied using manual pressure.
      • Must recheck with vertical protractor if vertical angle is right after adjusting.
      G14862932Courtesy of KIA MOTORS AMERICA, INC.
      G14862933Courtesy of KIA MOTORS AMERICA, INC.
    Number of turns Variation of angle
    Clockwise Counter clockwise
    0.5 + 0.5° -0.5°
    1 + 1.0° -1.0°
    1.5 + 1.5° -1.5°
    2 + 2.0° -2.0°
    2.5 + 2.5° -2.5°
    3 + 3.0° -3.0°
    3.5 + 3.5° -3.5°
    4 + 4.0° -4.0°
    4.5 + 4.5° -4.5°
    5 + 5.0° -5.0°
    NOTE:
    • Make sure that there is no foreign or reflective objects on the surface of the radar.
    • Make sure that there is no foreign or reflective objects on the radiator grille.
  1. Install the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  2. Perform the front radar inspection/correction procedure by using the SSTs.

    (Refer to Front Radar Unit - "ADJUSTMENT ")
