Front View Camera: Removal

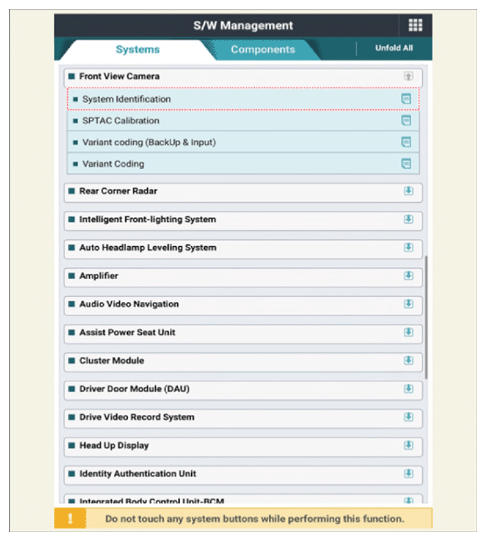

  1. Read the specification information of the existing front view camera before replacing it with a new one.
    G14862959Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 2WD")

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 4WD")

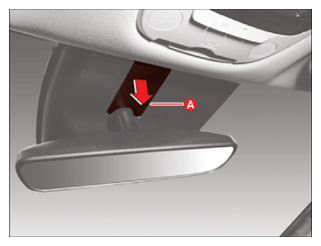

  3. Remove the multi - sensor blanking cover (A).
    G14862960Courtesy of KIA MOTORS AMERICA, INC.
    G14862961Courtesy of KIA MOTORS AMERICA, INC.
    IMPORTANT: Clip mount position:
    G13956631Courtesy of KIA MOTORS AMERICA, INC.

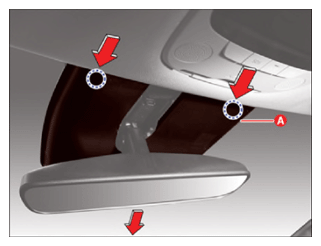

  4. Remove the multi - sensor cover (A) by pushing it in the direction of the arrow.
    G14862962Courtesy of KIA MOTORS AMERICA, INC.

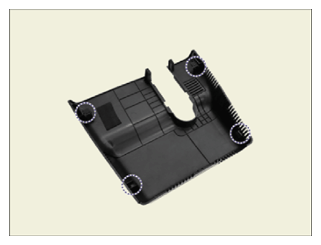

    G14862963Courtesy of KIA MOTORS AMERICA, INC.
    IMPORTANT: Clip mount position:
    G13956632Courtesy of KIA MOTORS AMERICA, INC.

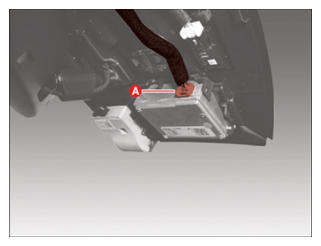

  5. Disconnect the front camera connector (A).
    G14862964Courtesy of KIA MOTORS AMERICA, INC.

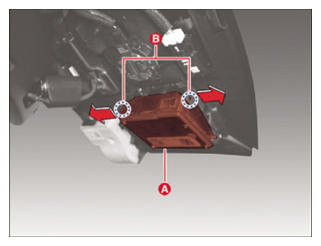

  6. Remove the front camera (A) by pulling both hooks (B) in the direction of the arrow.
    NOTE: When separating the fixed points (B), be careful not to damage it.
    G14862965Courtesy of KIA MOTORS AMERICA, INC.
