Repair Procedures: Inspection

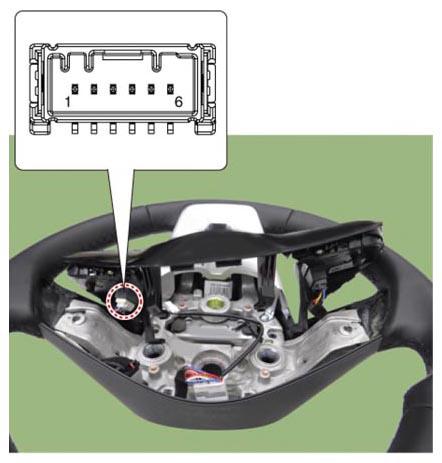

- Check for resistance between terminals in each switch position (RH).
 Courtesy of KIA MOTORS AMERICA, INC.
|
CRUISE - RESISTANCE SPECIFICATION
| Switch |
Connector terminal |
Resistance (±3%) |
| Cancel |
2 - 6 |
390 Ω |
| SET - |
610 Ω |
| RES + |
910 Ω |
| Cruise ON/OFF |
1.38 kΩ |
| Cruise & Speed Limit ON/OFF |
2.13 kΩ |
| SCC (Following distance control) |
3.63 kΩ |
