Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

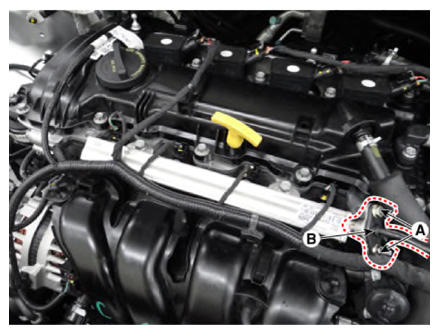

  3. Remove the installation nut (A), and then disconnect the fuel feed tube (B).

    Delivery pipe installation nut (↔ Fuel feed tube):

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    G14564420Courtesy of KIA MOTORS AMERICA, INC.

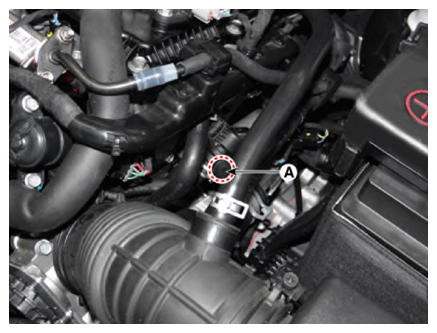

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G14564421Courtesy of KIA MOTORS AMERICA, INC.
  5. Lift the vehicle.
  6. Remove the fuel tank.

    Refer to Fuel Delivery System FUEL TANK - ")

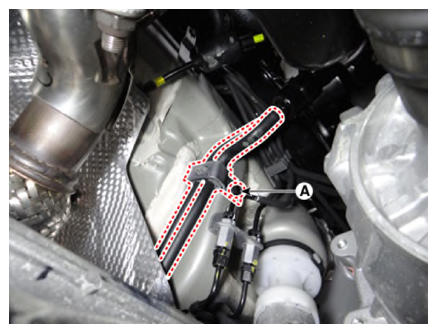

  7. Remove the fuel line fixing clip mounting bolt (A).
    G14564422Courtesy of KIA MOTORS AMERICA, INC.

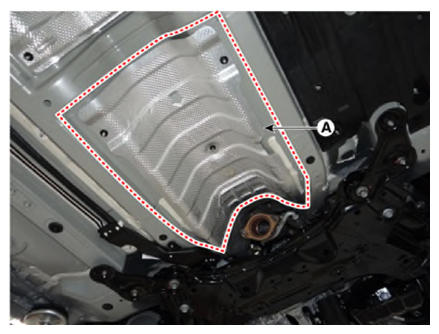

  8. Remove the heat protector (A) after loosening the mounting nuts.
    G14564423Courtesy of KIA MOTORS AMERICA, INC.

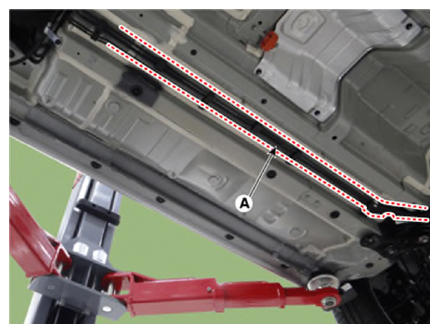

  9. Remove the fuel line (A).
G14564424Courtesy of KIA MOTORS AMERICA, INC.
