Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

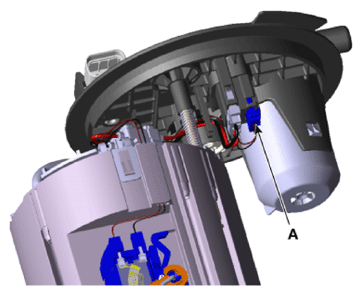

  2. Disconnect the fuel sender connector (A).
    G14564411Courtesy of KIA MOTORS AMERICA, INC.

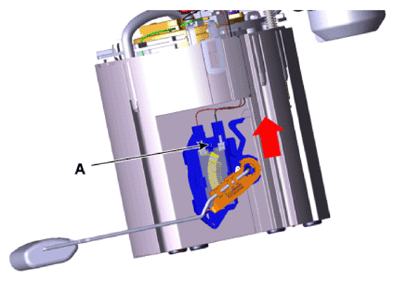

  3. Remove the fuel sender (A) in the direction of an arrow.
    G14564412Courtesy of KIA MOTORS AMERICA, INC.

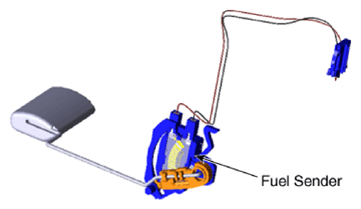

    G14564413Courtesy of KIA MOTORS AMERICA, INC.
