Connector Assembly Status Test

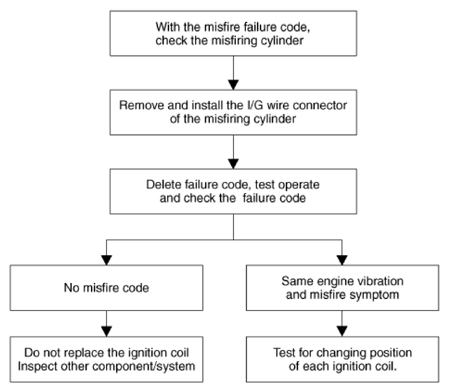

Connector Assembly Status Test

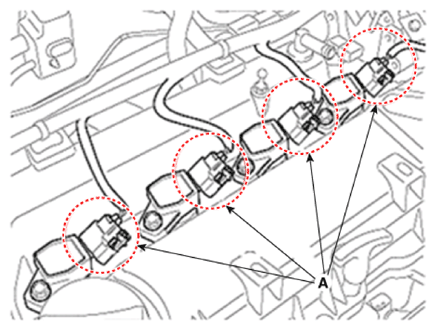

Remove the connector (A) and reinstall it.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
