Manual Transaxle Control System - 2.0L
›
Control Shaft Complete
›
Components And Components Location
›
Components Location
Components Location

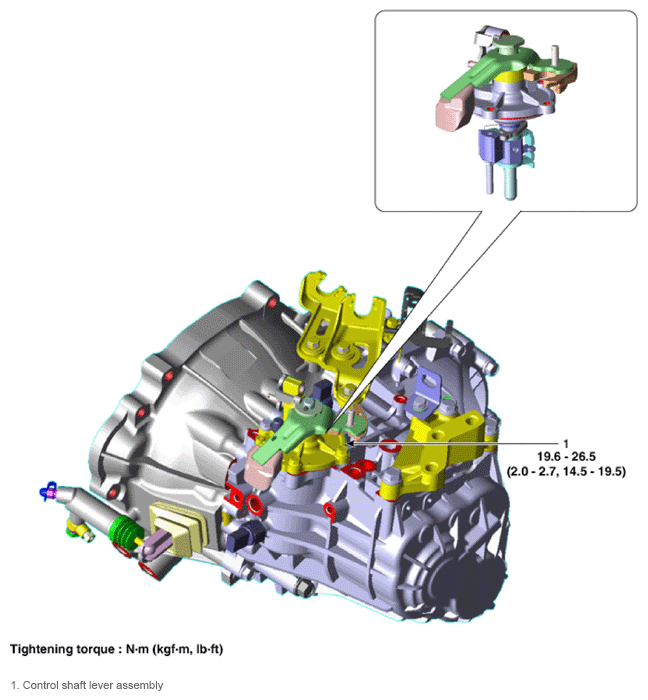

Fig 1: Control Shaft Complete Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
