Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

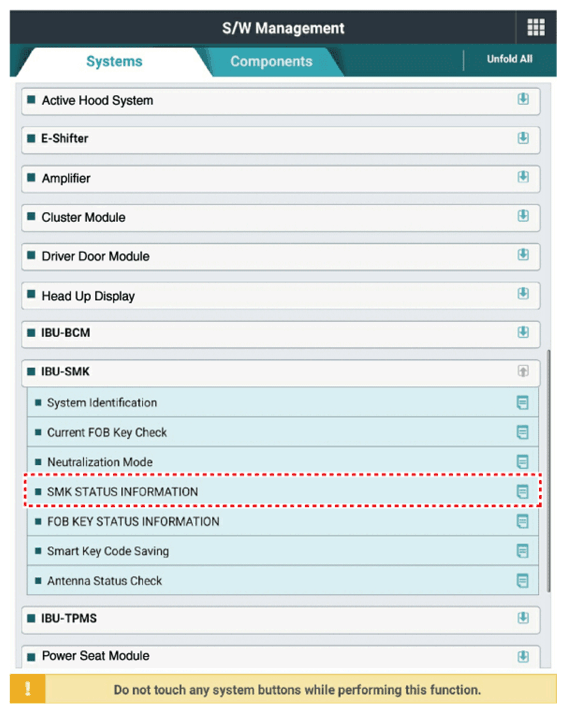

    G14556990Courtesy of KIA MOTORS AMERICA, INC.

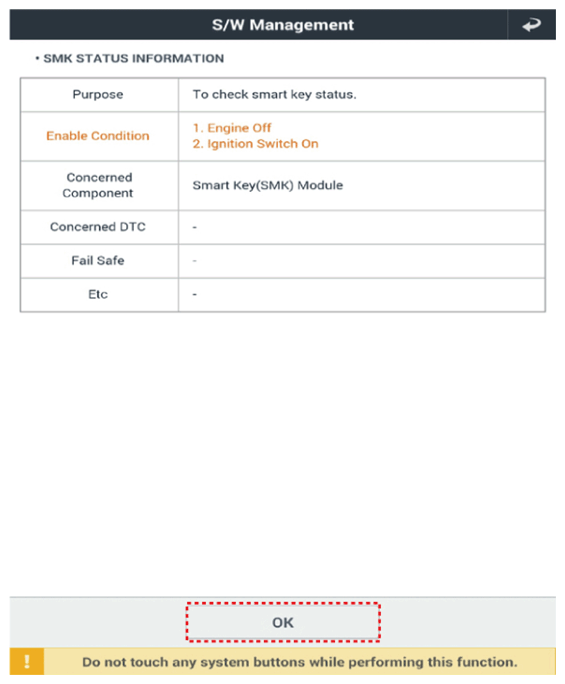

    G14556991Courtesy of KIA MOTORS AMERICA, INC.

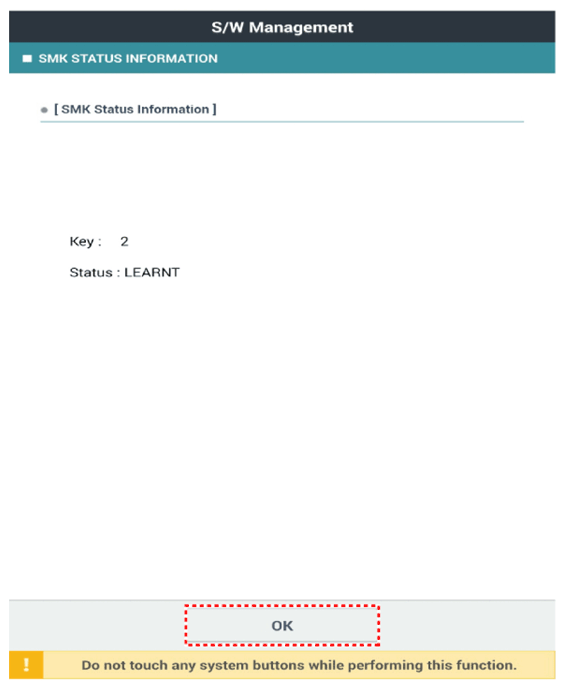

    G14556992Courtesy of KIA MOTORS AMERICA, INC.
