Forte GT Line
›
Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Button Engine Start System
›
Description And Operation
›
Description
›

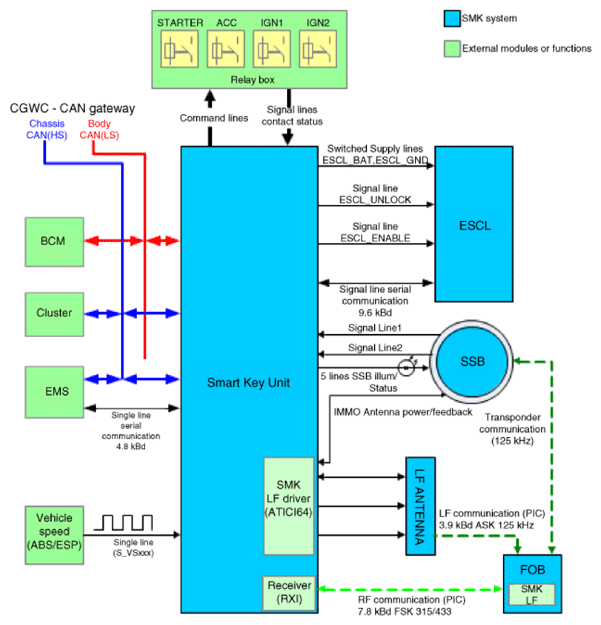

System Block Diagram

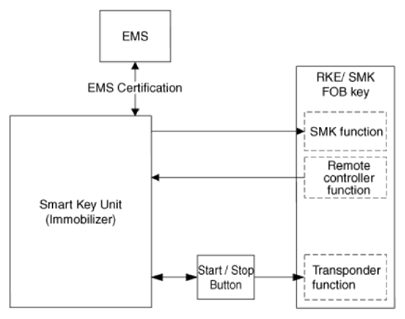

System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Refer to the "
SMART KEY SYSTEM
" for the block diagram and circuit diagram of the smart key unit.
Courtesy of KIA MOTORS AMERICA, INC.
