Repair Procedures: Inspection

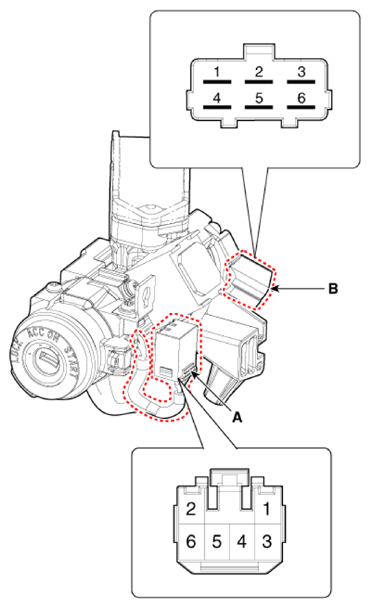

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G14563822Courtesy of KIA MOTORS AMERICA, INC.

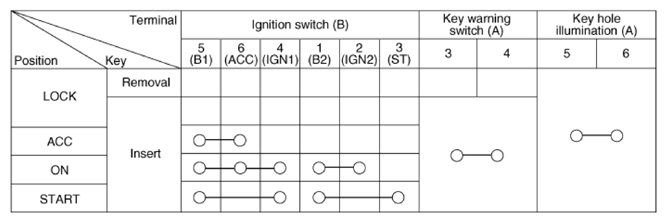

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14563823Courtesy of KIA MOTORS AMERICA, INC.
