Home › Kia › 2022 › Forte GT Line › Repair and Diagnosis › Body & Frame › Mirrors › ELECTROCHROMIC Inside Rear View Mirror › Repair Procedures › Removal

Repair Procedures: Removal

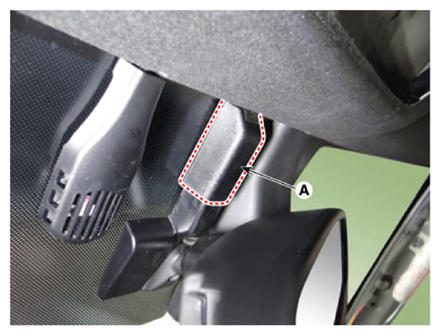

  1. Remove the mirror wiring cover (A).
    NOTE: Be careful not to damage the mirror wiring cover.
    G14563792Courtesy of KIA MOTORS AMERICA, INC.

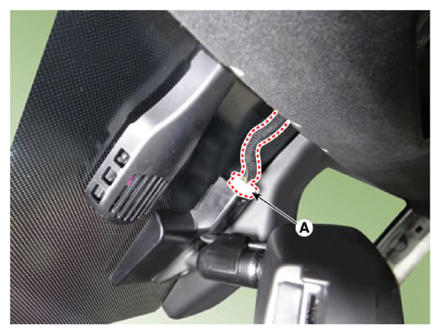

  2. Disconnect the connector (A) from mirror.
    G14563793Courtesy of KIA MOTORS AMERICA, INC.

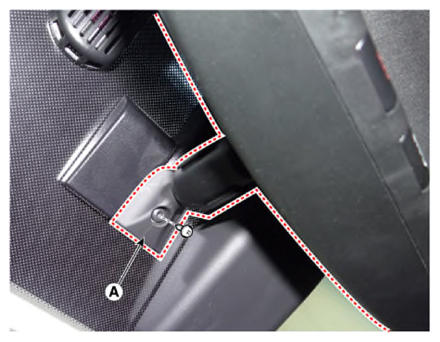

  3. Remove the rear view inside mirror (A) after loosening the screw.
    G14563794Courtesy of KIA MOTORS AMERICA, INC.
