Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

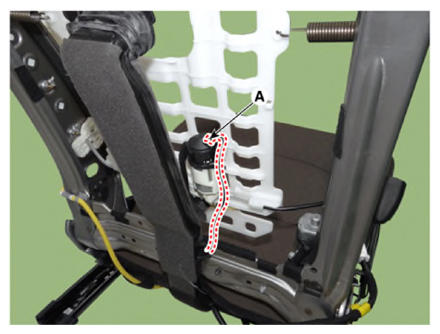

  2. Disconnect the connector (A) from lumbar support motor.
    G14564134Courtesy of KIA MOTORS AMERICA, INC.

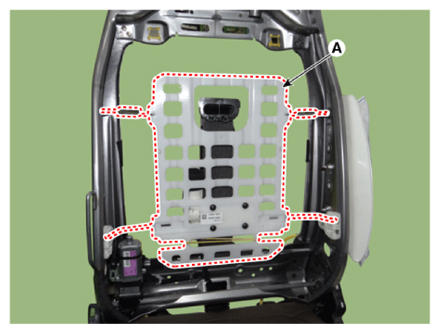

  3. Remove the lumbar support (A).
    G14564135Courtesy of KIA MOTORS AMERICA, INC.
