Description And Operation: Description

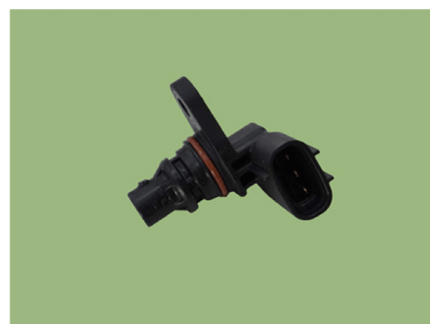

• Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element.
• It is synchronized with Crankshaft Position Sensor (CKPS) and detects the piston position of each cylinder which cannot be detected by the CKPS.
• The two CMPS are installed on engine head cover of bank 1 and 2 (intake, exhaust) respectively and use a target wheel installed on the camshaft.
• Engine Control Module (ECM) detects the cycle of each cylinder based on the Camshaft Position Sensor (CMPS) signal and controls the fuel injection of each cylinder.

Courtesy of KIA MOTORS AMERICA, INC.
