Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

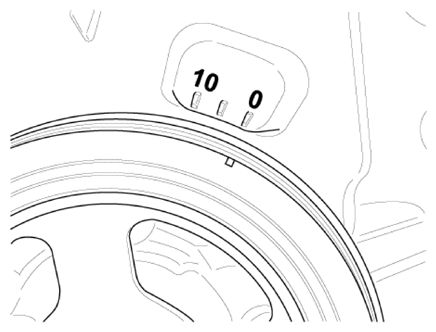

  1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.
    G14560556Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

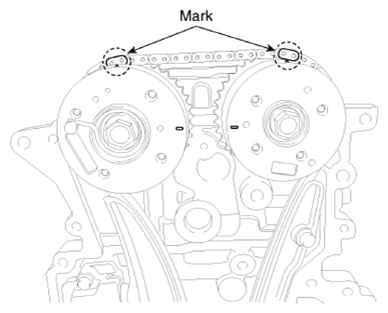

  3. Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.

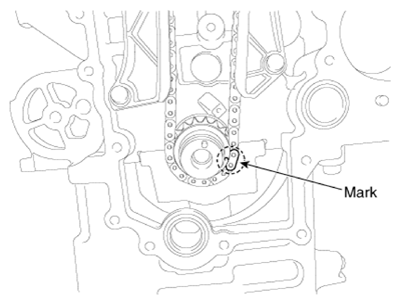

    NOTE: Check the dowel pin of the crankshaft for facing upside of the engine at this moment.
    G14560557Courtesy of KIA MOTORS AMERICA, INC.
    G14560558Courtesy of KIA MOTORS AMERICA, INC.

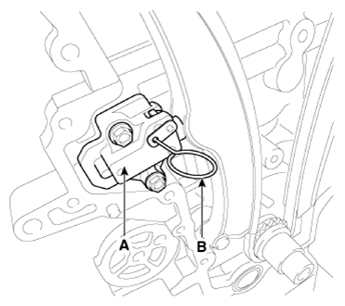

  4. Remove the timing chain auto tensioner (A).
    G14560559Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.

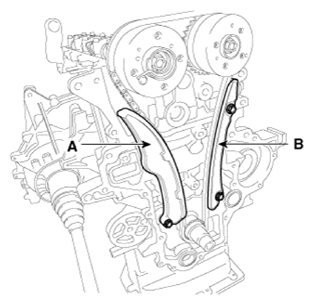

  5. Remove the timing chain tensioner arm (A) and guide (B).
    G14560560Courtesy of KIA MOTORS AMERICA, INC.

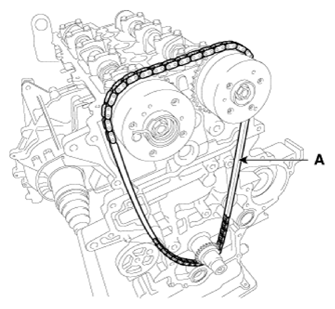

  6. Remove the timing chain (A).
    G14560561Courtesy of KIA MOTORS AMERICA, INC.
