Repair Procedures: Removal
- Remove the ignition coil.
G 1.6 T-GDI GAMMA (Refer to Ignition System - "IGNITION COIL ")
G 2.0 MPI NU (ATKINSON) (Refer to Ignition System - "IGNITION COIL ")

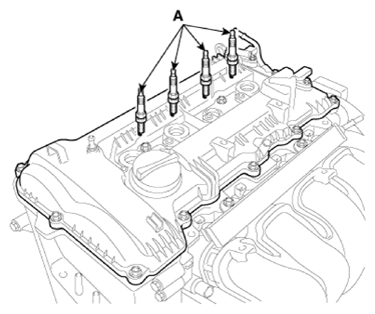

- Using a spark plug wrench, remove the spark plug (A).NOTE:
- Be careful that no contaminates enter into spark plug holes.
