Repair procedures: Inspection

Check the strut bearing for wear and damage.
Check the spring upper and lower pad for damage and deterioration.

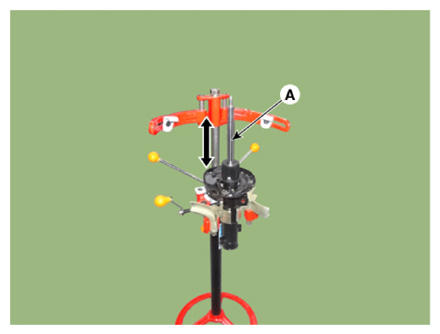

Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

Courtesy of KIA MOTORS AMERICA, INC.
