Components And Components Location: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

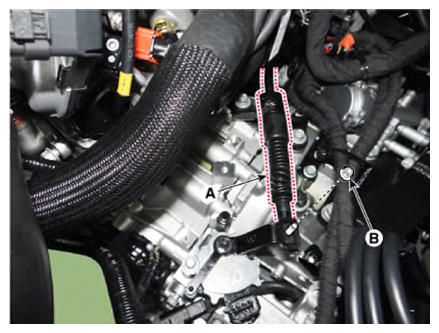

  4. Remove the shift cable (A) from the bracket after loosening a nut (B).
    G14561230Courtesy of KIA MOTORS AMERICA, INC.

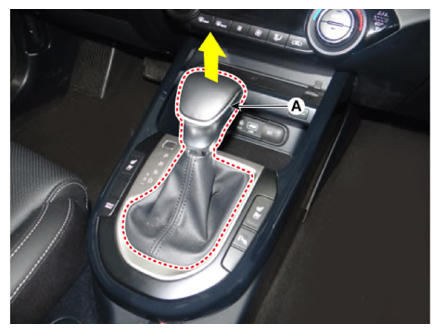

  5. Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
    G14561231Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

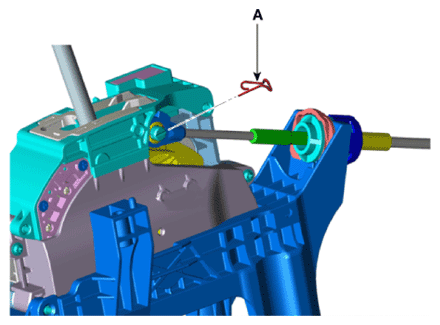

  7. Remove the shift cable from the shift lever pin after removing the snap pin (A).
    G14561232Courtesy of KIA MOTORS AMERICA, INC.

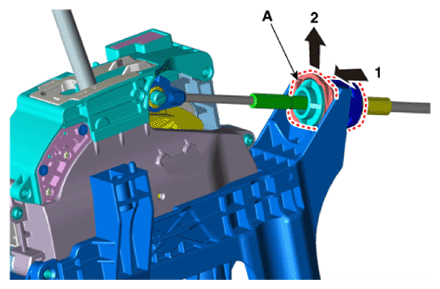

  8. Remove the cable socket (A) from the shift lever.
    G14561233Courtesy of KIA MOTORS AMERICA, INC.

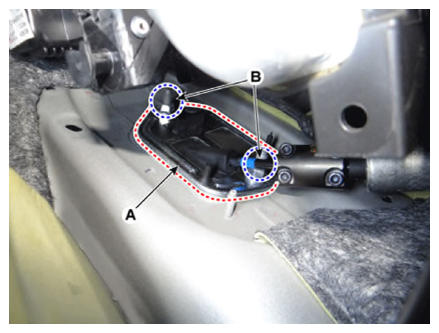

  9. Remove the shift cable retainer (A) after loosening the nuts (B).

    Then, remove the shift cable by pulling it toward the vehicle interior.

    G14561234Courtesy of KIA MOTORS AMERICA, INC.
