Components And Components Location: Components

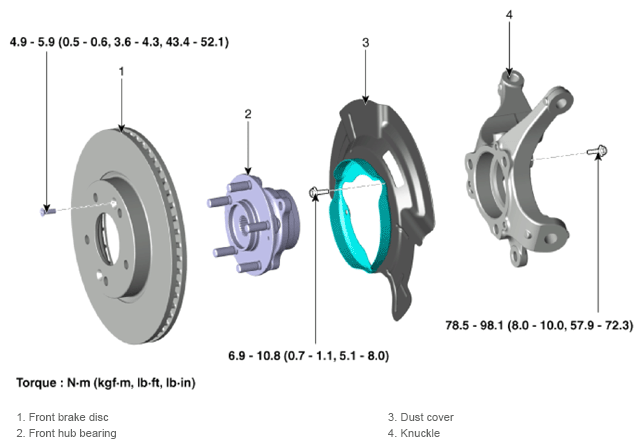

Fig 1: Front Axle Assembly Components Location With Torque Specification
G14561313Courtesy of KIA MOTORS AMERICA, INC.
