Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

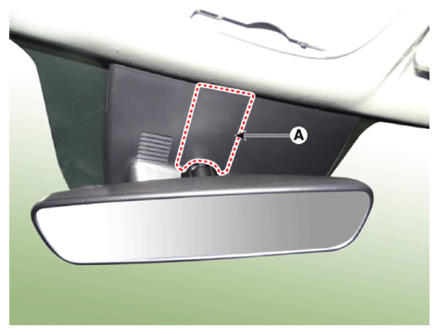

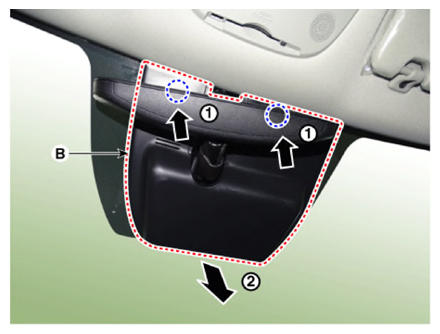

  2. Remove the multi sensor cover (A), (B).
    G13835948Courtesy of KIA MOTORS AMERICA, INC.
    G13835949Courtesy of KIA MOTORS AMERICA, INC.

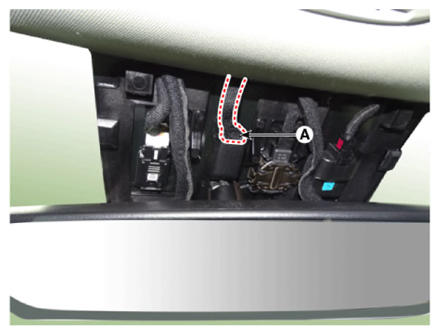

  3. Disconnect the inside rear view mirror connector (A).
    G13835950Courtesy of KIA MOTORS AMERICA, INC.

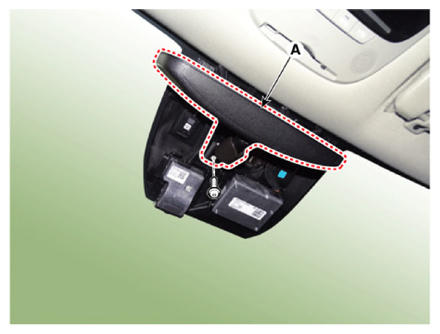

  4. Remove the inside rear view mirror (A) after loosening the screw.
G13835951Courtesy of KIA MOTORS AMERICA, INC.
