Repair Procedures: Reassembly

  1. Install in the reverse order of disassembly.
    NOTE:

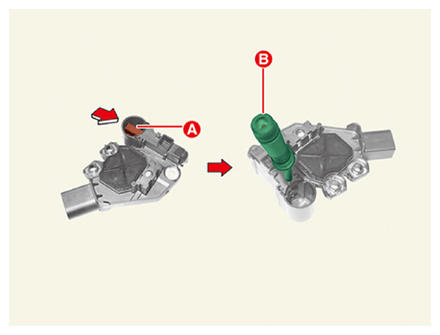

    • Hold the brush (A) after pushing it in the arrow direction and inserting the pin (B).
      G13837262Courtesy of KIA MOTORS AMERICA, INC.

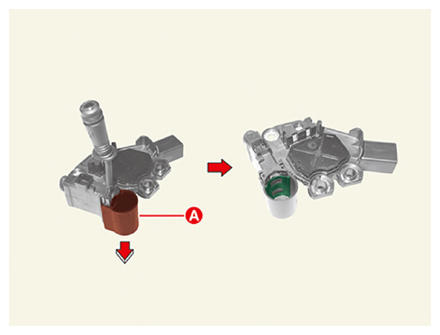

    • Hold the brush while pushing the cap (A) down in the arrow direction.
      G13837263Courtesy of KIA MOTORS AMERICA, INC.

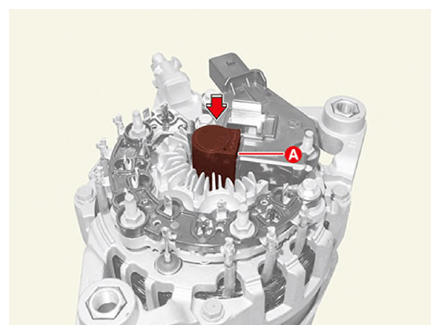

    • Install the cap (A) by pushing in the arrow direction after installing the brush and regulator assembly.
      G13837264Courtesy of KIA MOTORS AMERICA, INC.
    • The OAD must be replaced with the OAD cap.
