Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead before assembling the steering wheel.
    CAUTION: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Disconnect the battery negative terminal, and wait for at least 30 seconds before beginning to work.
  3. While turning the steering wheel to left and right, press the parts marked A (3 red dotted circles) under the steering wheel and then remove the airbag module.
    G13374220Courtesy of KIA MOTORS AMERICA, INC.

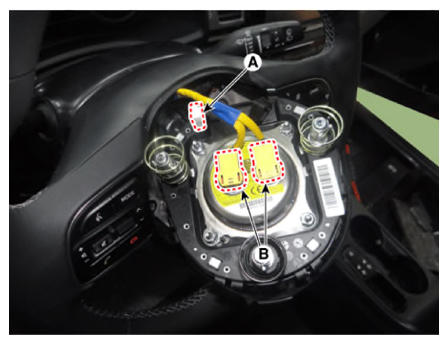

  4. Disconnect the air bag connector (A) and horn connector (B).
    G13374221Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

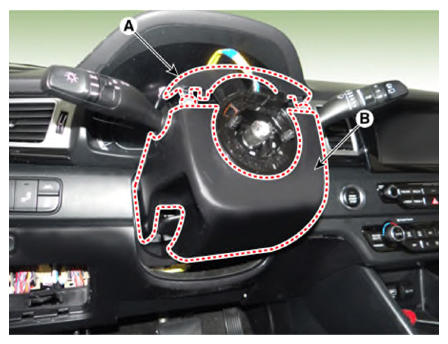

  6. Remove the upper steering wheel column shroud (A).
  7. Loosen the screws and remove the lower shroud (B).
    G13374222Courtesy of KIA MOTORS AMERICA, INC.

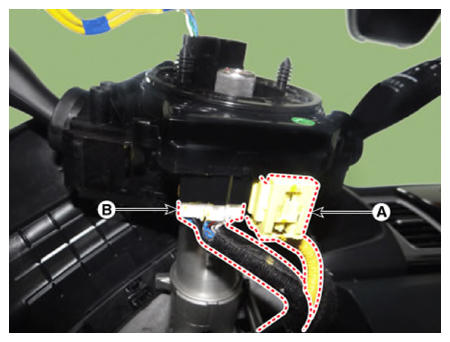

  8. Separate clock spring wiring harness connector (A) to the horn wiring harness connector (B) in a clock spring.
