Repair Procedures: Inspection

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.

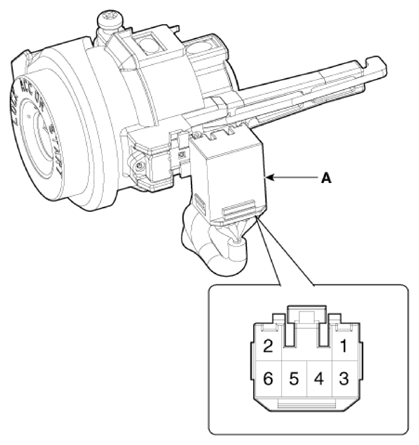

    G13438534Courtesy of KIA MOTORS AMERICA, INC.

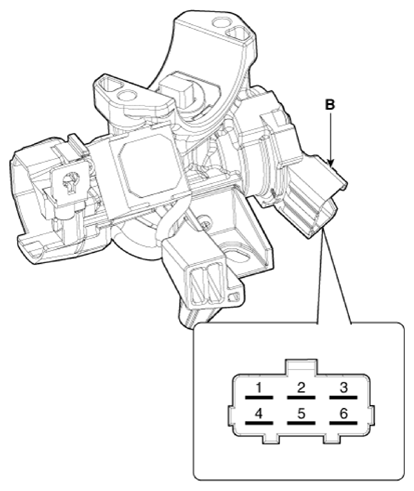

    G13438535Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

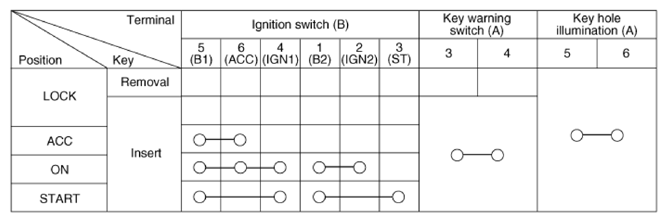

G13438536Courtesy of KIA MOTORS AMERICA, INC.
