Smart Key Unit

Remove the BCM.
(Refer to Body Control Module - "REMOVAL ")

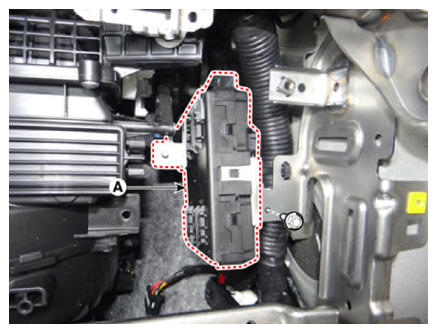

Remove the smart key unit (A) by loosening the bolt.

Courtesy of KIA MOTORS AMERICA, INC.

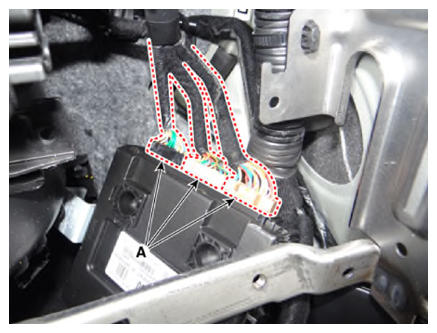

Disconnect the connectors (A) from the smart key unit.

Courtesy of KIA MOTORS AMERICA, INC.
