Smart Key Code Saving

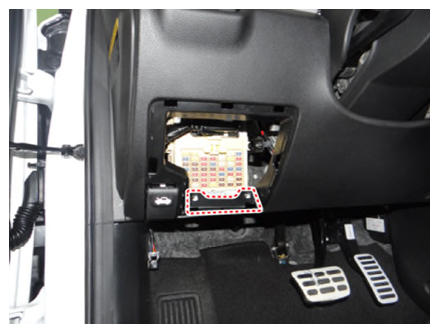

  1. Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS/GDS.
    G13706501Courtesy of KIA MOTORS AMERICA, INC.

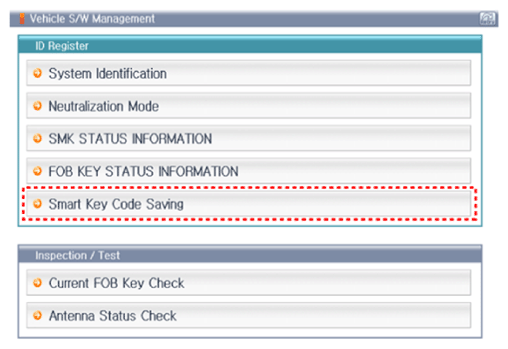

  2. Select the vehicle model and then do "Smart key code saving".
    G13706502Courtesy of KIA MOTORS AMERICA, INC.

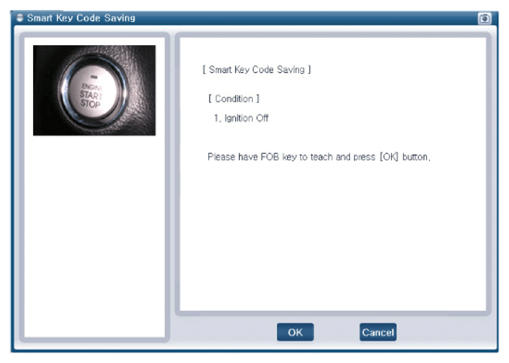

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13706503Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

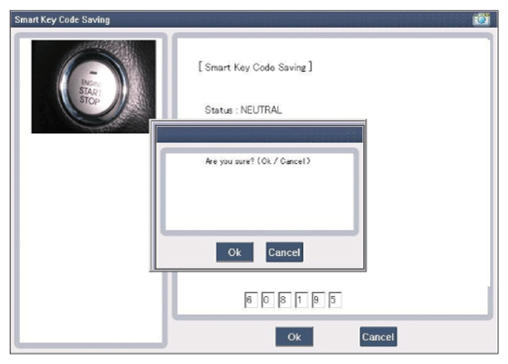

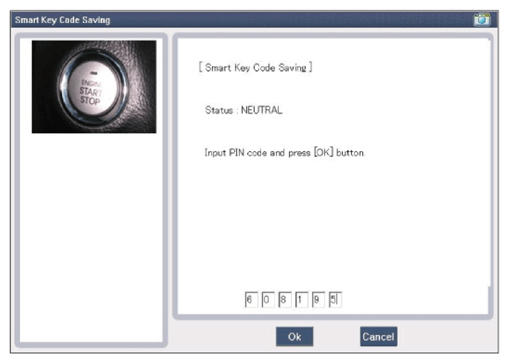

  5. Input the "Pin code" for first key teaching.
    G13706504Courtesy of KIA MOTORS AMERICA, INC.
    G13706505Courtesy of KIA MOTORS AMERICA, INC.
  6. Press the SSB with smart key within 5 sec after pressing "OK".
    G13706506Courtesy of KIA MOTORS AMERICA, INC.
  7. Confirm the message "First key teaching completed".
    G13706507Courtesy of KIA MOTORS AMERICA, INC.

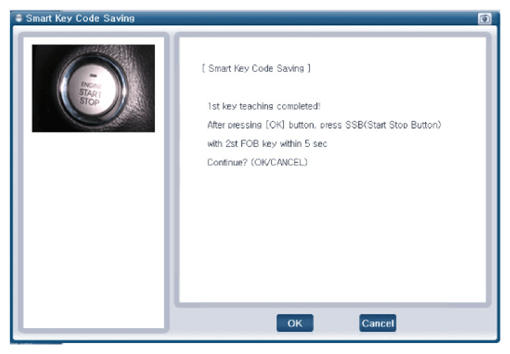

  8. Press the SSB with smart key within 5 sec after pressing "OK".
    G13706508Courtesy of KIA MOTORS AMERICA, INC.

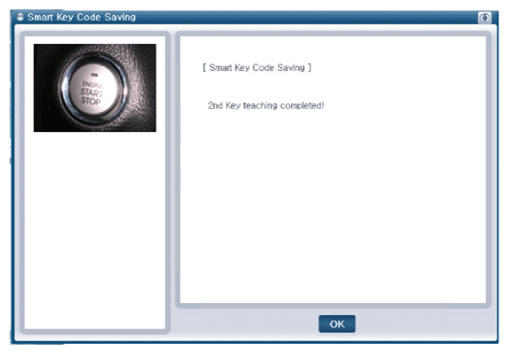

  9. Confirm the message "Second key teaching completed".
    G13706509Courtesy of KIA MOTORS AMERICA, INC.

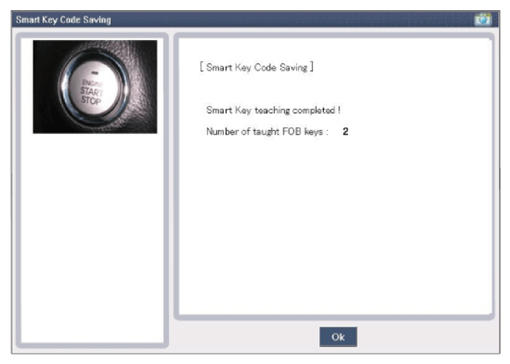

  10. Then the screen will be shown as below when key teaching process is completed.
    G13706510Courtesy of KIA MOTORS AMERICA, INC.
