Repair Procedures: Inspection

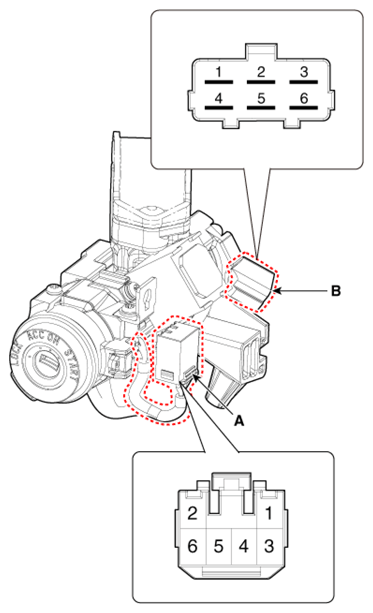

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G14963005Courtesy of KIA MOTORS AMERICA, INC.

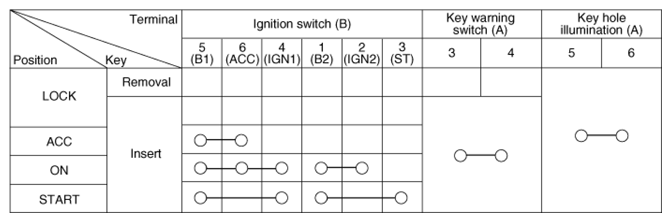

  2. Check for continuity between the terminals.
    G14963006Courtesy of KIA MOTORS AMERICA, INC.
