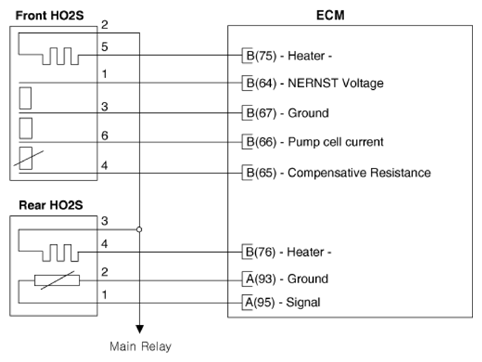

Home › Kia › 2022 › Sorento Plug-In Hybrid SX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
