Connector and Terminal Function

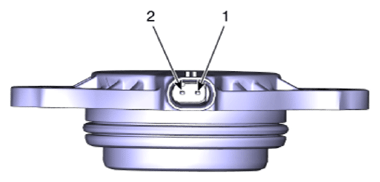

G14957051Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Power
2 Ground
