Home › Kia › 2022 › Sorento Plug-In Hybrid SX › Repair and Diagnosis › Restraints › Restraints Control Systems › Front Seat Belt (PHEV) › Components & Components Location- › Components

Components & Components Location-: Components

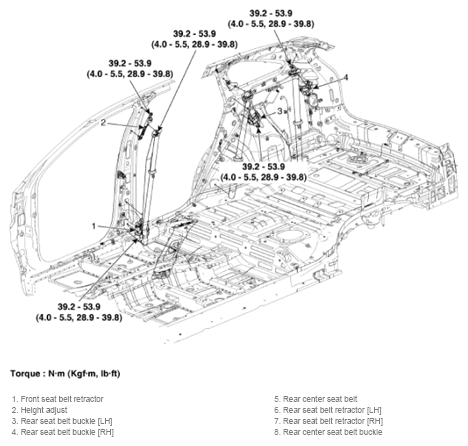

Fig 1: Front Seat Belt Components With Torque Specification
G14942315Courtesy of KIA MOTORS AMERICA, INC.
