Repair Procedures: Removal
- Disconnect the auxiliary battery negative (-) terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

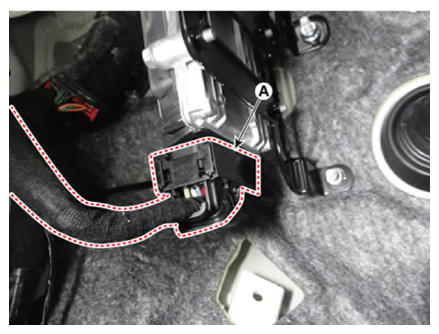

- Disconnect the SCU connector (A).

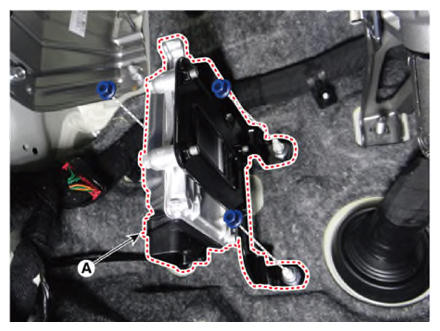

- Remove the SCU (A) by removing the nuts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
